How artificial intelligence gave a paralyzed woman her voice back

It is the first time that either speech or facial expressions have been synthesized from brain signals. The system can also decode these signals into text at nearly 80 words per minute, a vast improvement over commercially available technology.

Edward Chang, MD, chair of neurological surgery at UCSF, who has worked on the technology, known as a brain computer interface, or BCI, for more than a decade, hopes this latest research breakthrough, appearing Aug. 23, 2023, in Nature, will lead to an FDA-approved system that enables speech from brain signals in the near future.

"Our goal is to restore a full, embodied way of communicating, which is really the most natural way for us to talk with others," said Chang, who is a member of the UCSF Weill Institute for Neuroscience and the Jeanne Robertson Distinguished Professor in Psychiatry. "These advancements bring us much closer to making this a real solution for patients."

Chang's team previously demonstrated it was possible to decode brain signals into text in a man who had also experienced a brainstem stroke many years earlier. The current study demonstrates something more ambitious: decoding brain signals into the richness of speech, along with the movements that animate a person's face during conversation.

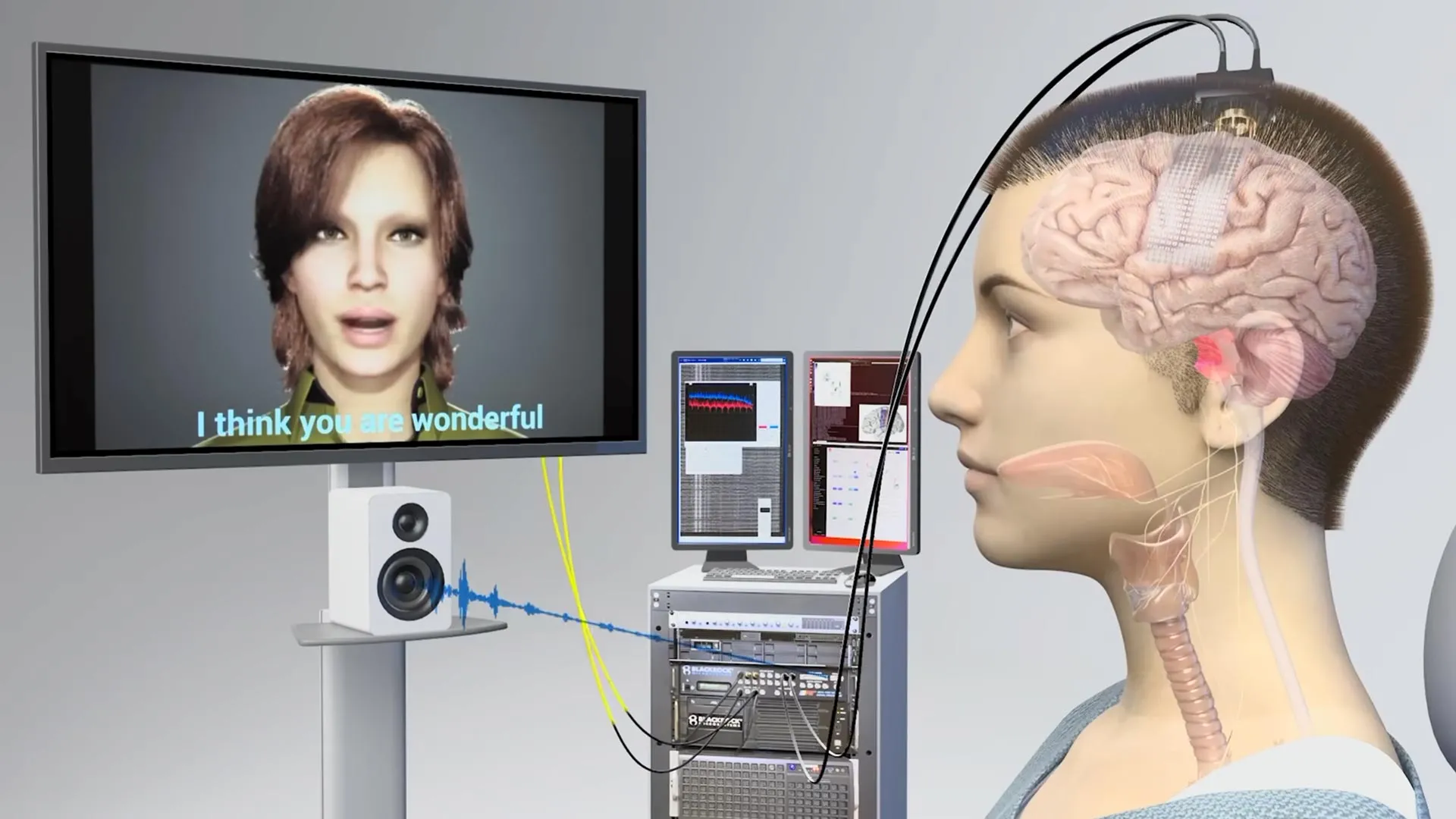

Chang implanted a paper-thin rectangle of 253 electrodes onto the surface of the woman's brain over areas his team has discovered are critical for speech. The electrodes intercepted the brain signals that, if not for the stroke, would have gone to muscles in her, tongue, jaw and larynx, as well as her face. A cable, plugged into a port fixed to her head, connected the electrodes to a bank of computers.

For weeks, the participant worked with the team to train the system's artificial intelligence algorithms to recognize her unique brain signals for speech. This involved repeating different phrases from a 1,024-word conversational vocabulary over and over again, until the computer recognized the brain activity patterns associated with the sounds.

Rather than train the AI to recognize whole words, the researchers created a system that decodes words from phonemes. These are the sub-units of speech that form spoken words in the same way that letters form written words. "Hello," for example, contains four phonemes: "HH," "AH," "L" and "OW."

Using this approach, the computer only needed to learn 39 phonemes to decipher any word in English. This both enhanced the system's accuracy and made it three times faster.

"The accuracy, speed and vocabulary are crucial," said Sean Metzger, who developed the text decoder with Alex Silva, both graduate students in the joint Bioengineering Program at UC Berkeley and UCSF. "It's what gives a user the potential, in time, to communicate almost as fast as we do, and to have much more naturalistic and normal conversations."

To create the voice, the team devised an algorithm for synthesizing speech, which they personalized to sound like her voice before the injury, using a recording of her speaking at her wedding.

The team animated the avatar with the help of software that simulates and animates muscle movements of the face, developed by Speech Graphics, a company that makes AI-driven facial animation. The researchers created customized machine-learning processes that allowed the company's software to mesh with signals being sent from the woman's brain as she was trying to speak and convert them into the movements on the avatar's face, making the jaw open and close, the lips protrude and purse and the tongue go up and down, as well as the facial movements for happiness, sadness and surprise.

"We're making up for the connections between the brain and vocal tract that have been severed by the stroke," said Kaylo Littlejohn, a graduate student working with Chang and Gopala Anumanchipalli, PhD, a professor of electrical engineering and computer sciences at UC Berkeley. "When the subject first used this system to speak and move the avatar's face in tandem, I knew that this was going to be something that would have a real impact."

An important next step for the team is to create a wireless version that would not require the user to be physically connected to the BCI.

"Giving people the ability to freely control their own computers and phones with this technology would have profound effects on their independence and social interactions," said co-first author David Moses, PhD, an adjunct professor in neurological surgery.
